21.5" Full HD TFT LCD Touch Panel Computer with AMD Dual-core processor
With a brand-new ID design, the TPC-2140WP provides a high resolution 21.5" display and PCT multi-touch in 16:9 wide format. By embedding an AMD T56E 1.65GHz processor with independent GPU, the TPC-2140WP can support advanced graphical performance in more complex applications. Built-in function and home key button for greater user usability and operating safety. The TPC-2140WP also supports a mini-PCIe slot for communication function expansion. The opening side cover is designed for easy maintenance of Cfast/HDD/Mini-PCIe components.

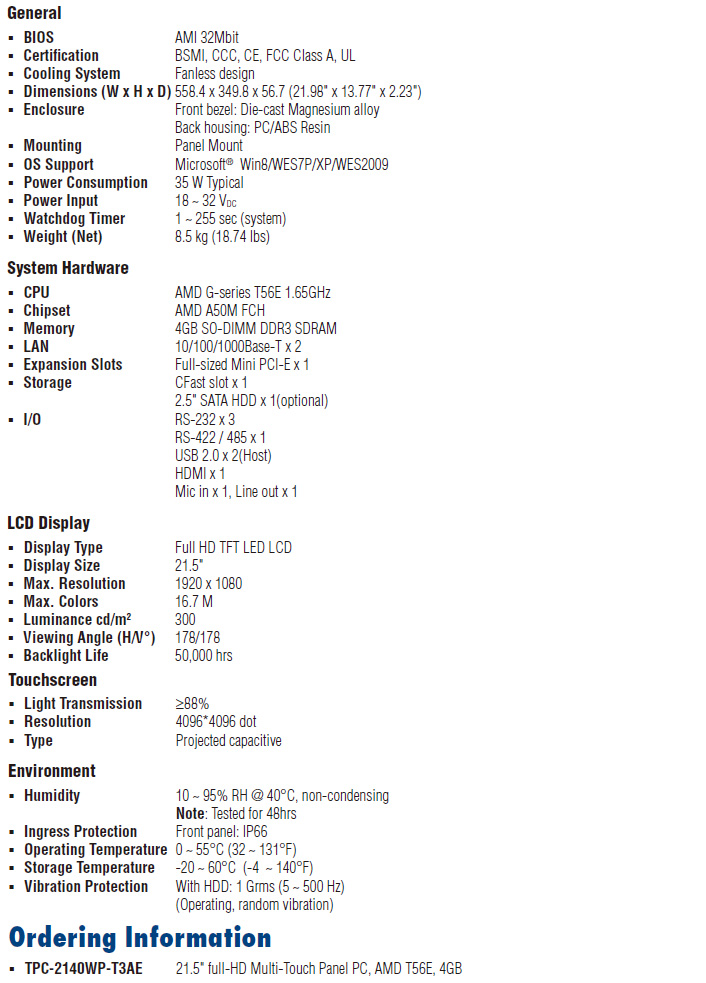

规格
订货信息
| 料号 | 说明 |
| TPC-2140WP-T3AE | 21.5" full-HD Multi-Touch Panel PC, AMD T56E, 4GB |
| Optional Accessories | |
| PWR-247-CE | 60W DC 24V/2.5A Output Power Supply |
| TPC-1251T-EHKE | HDD/SSD and iDoor extension kit |
| 1702002600 | Power Cable US Plug 1.8 M |
| 1702002605 | Power Cable EU Plug 1.8 M |
| 1702031801 | Power Cable UK Plug 1.8 M |
| 1700000596 | Power Cable China/Australia Plug 1.8 M |
| Embedded O/S | |
| 2070012384 | TPC-xx40WP WS7P x86 MUI Image v4.12 |
| S/W Bundle Offering | |
| WA-ST2140W-G15H4AE | TPC-2140WP-T3AE, SCADA Runtime 1500 tags, 1TB HDD, WES7P |
| WA-HT2140W-G15H1AE | TPC-2140WP-T3AE, HMI Runtime 1500 tags, 32G CFast, WES7P |
| iDoor Modules(TPC-1251T-EHKE is required for iDoor modules) | |
| PCM-26D2CA-AE | SJA1000 CANBus, CANOpen, DB9 x 2 |
| PCM-26D1DB-MAE | Hilscher netX100 FieldBus, ProfiBus, DB9 x 1 |
| PCM-27D24DI-AE | Digital I/O, 16 DI / 8 DO, Isolation, DB37 x 1 |
| PCM-24D2R4-AE | OXPCIe-952 UART, Isolated RS-422/485, DB9 x 2 |
| PCM-24D2R2-AE | OXPCIe-952 UART, Isolated RS-232, DB9 x 2 |
| PCM-24R2GL-AE | 2 Port Giga LAN Intel i350 PCIe mini card |
| PCM-24R1TP-AE | Intel 82574L, GbE, IEEE 1588 PTP, RJ45 x 1 |
| PCM-24S2WF-AE | 802.11 a/b/g/n 2T2R w/ BT4.0, Atheros AR9462 |
北京东森兰泰科技有限公司
电 话:010-82404894 / 010-62826279
移动电话:13811165433 13269032575
传 真:010-82404894-608
地 址:中国北京市海淀区西三旗SOCO公社(瑞旗家园)28号
邮 编:100096
公司主页:http://www.qdipc.com
淘宝网店:http://dslt.taobao.com
阿里网店:http://miaoajuan.1688.com

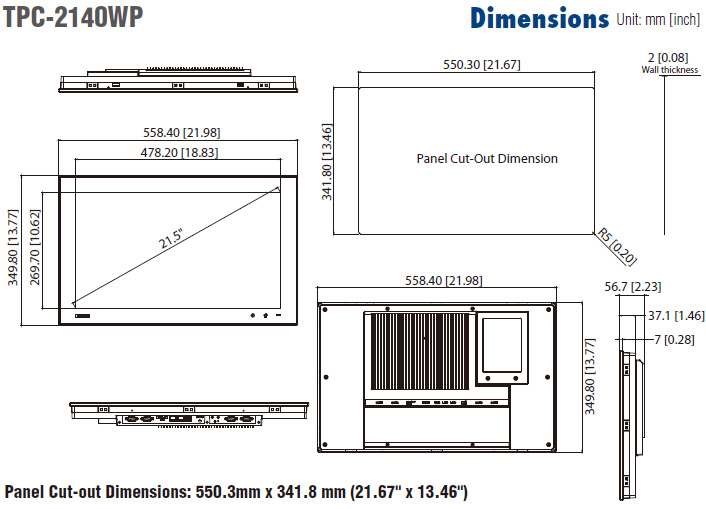

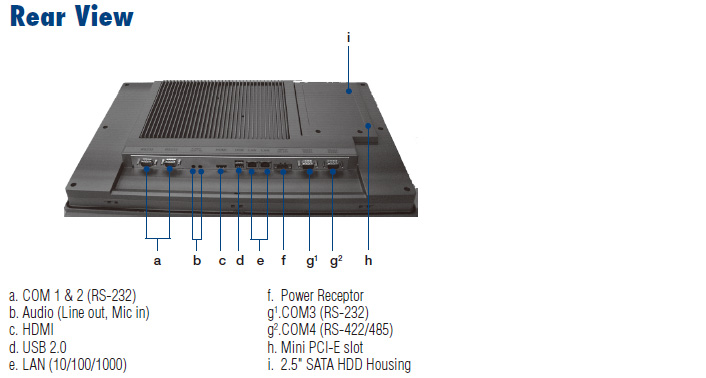

产品图片及框图
