触控式平板电脑 TPC产品

TPC-5152T



主要特点

Intel® Core™ i3-6100U processor with 8 GB of DDR4 SODIMM
Industrial-grade LED LCD with a lifespan of 50,000 hours
Modular design for flexible configuration and easy maintenance
Display panel modules available in various sizes with either projected capacitive touch functionality for multi-touch control or 5-wire resistive touch functionality
Intelligent home key and iKey provide intuitive user interfaces for system control
Built-in Trusted Platform Module (TPM) 2.0
2 x full-size mini-PCIe and 1 x half-size PCIe
Supports SSD expansion
IP66-compliant front panel protection
Optional Wi-Fi/NFC module on the front panel
3 x LAN with multiple fieldbus protocol support and LAN surge protection
IEC 61010-2 compliant (only panels of certain sizes)
Logo can be customized without changing the touchscreen



产品介绍

Modular 15" XGA LED LCD with 6th Gen. Intel® Core™ i3-6100U Multi-Touch Panel Computer

The TPC-5000 is the first modularized model of Advantech’s control panel products. Equipped with a low-power 6th Gen Intel® Core™ i processor, 8 GB of DDR4 SODIMM memory,and an industrial-grade LCD, TPC-5000 is a compact fanless system that provides a display panel solution with excellent computing performance. The modularized design ensures flexible expansion and configuration, as well as easy maintenance and upgrades. To withstand a wide-range of environments, the system also features an IP66-rated front panel for water and dust resistance, a glass panel with 7H surface harness that supports projected capacitive or 5-wire resistive touch control, and a robust system enclosure with die-cast aluminum alloy front bezel. To satisfy a wide range of industrial automation applications, the TPC-5000’s box module supports flexible expansion with the inclusion of iDoor technology (optional), 3 x LANs with redundancy and multiple fieldbus protocol support, MRAM and TPM 2.0 technology for ensuring data security, and an isolated power design with LAN surge protection to ensure safe system upgrades. Additionally, the TPC-5000’s panel module can be fitted with an optional Wi-Fi/NFC module to enhance wireless communication.

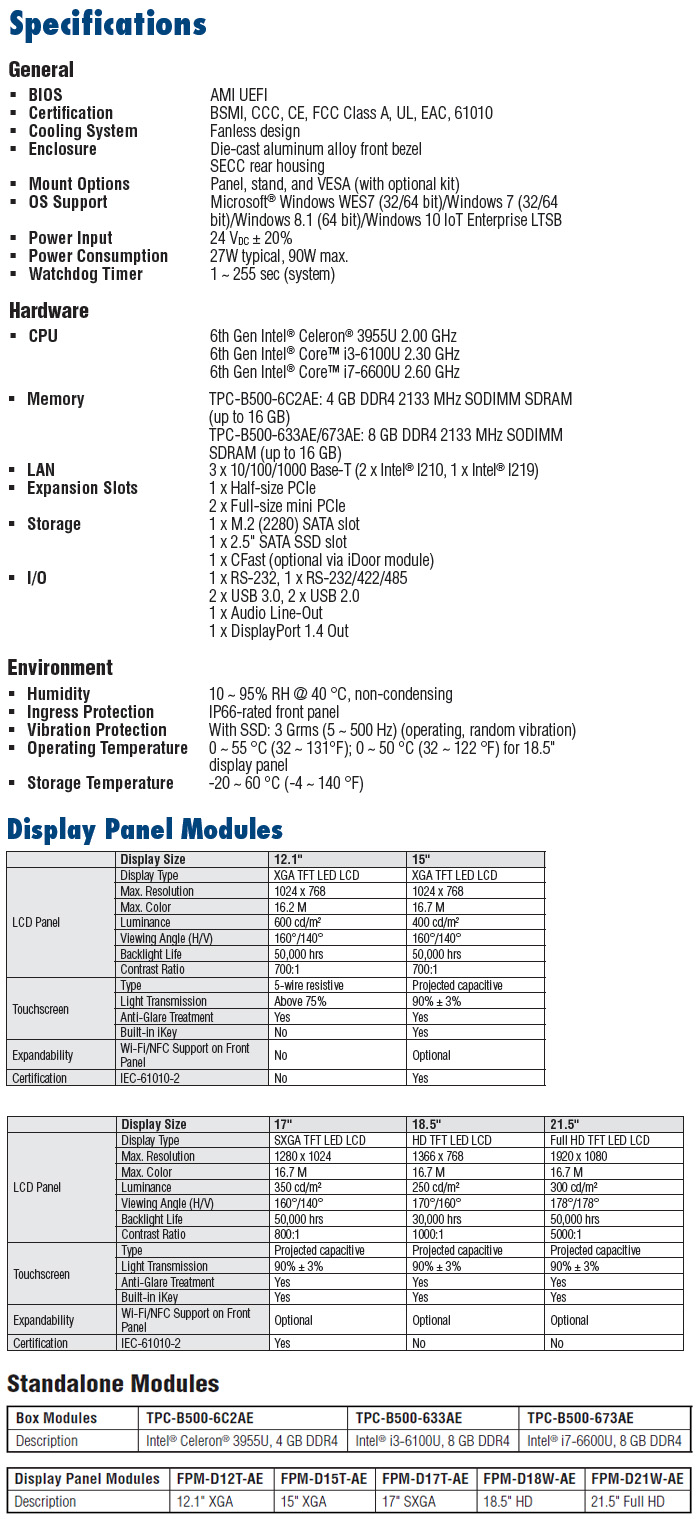

规格


订货信息

Ordering Information
Pre-Configured System
TPC-5172T-633AE 15” XGA touch panel with Intel® Core™ i3-6100U dualcore processor (2.30 GHz) and 8 GB RAM
TPC-5172T-633AE 17” SXGA touch panel with Intel® Core™ i3-6100U dualcore processor (2.30 GHz) and 8 GB RAM
TPC-5212W-633AE 21.5” FHD touch panel with Intel® Core™ i3-6100U dualcore processor (2.30 GHz) and 8 GB RAM
*Contact your local sales team for configuration queries.
Optional Accessories
1702002600 Power cable (US) 1.8 M
1702002605  Power cable (EU) 1.8 M
1702031801  Power cable (UK) 1.8 M
1700000596  Power cable (China/Australia) 1.8 M
96PSA-A120W24T2  Adapter 100 ~ 240V 120W 24V 5A
98R35000020  mPCIe HDMI & VGA module for TPC 5000
98R35000010  Wi-Fi module 802.11 bgn/RT5390 1T1R with USB signal
98R35000000  USB NFC/RFID module ADT-006
TPC-RUSB-W10LTSBV  Win10 IoT Enterprise LTSB OS with recovery image for Intel® Core™ i3/i5 and Celeron®
TPC-RUSB-W10LTSBH  Win10 IoT Enterprise LTSB OS with recovery image for Intel® Core™ i7
TPC-5000T-VMKE  VESA mounting kit for TPC 5000 and 2000 Series
TPC-1000T-WMKE  VESA and Wall mounting kit for TPC series from 10" to 17" panels
iDoor Modules
PCM-24D2R4-AE  2-Port isolated RS-422/485 mPCIe, DB9
PCM-27D24DI-AE  24-Channel isolated DI/O w/ counter mPCIe, DB37
PCM-26D2CA-AE  2-Port isolated CANBus mPCIe, CANOpen, DB9
PCM-24R1TP-AE  1-Port Gigabit Ethernet, Intel® 82574L, mPCIe, RJ45
PCM-26D1DB-MAE  1-Port Hilscher netX100 fieldbus mPCIe, PROFIBUS,DB9, master

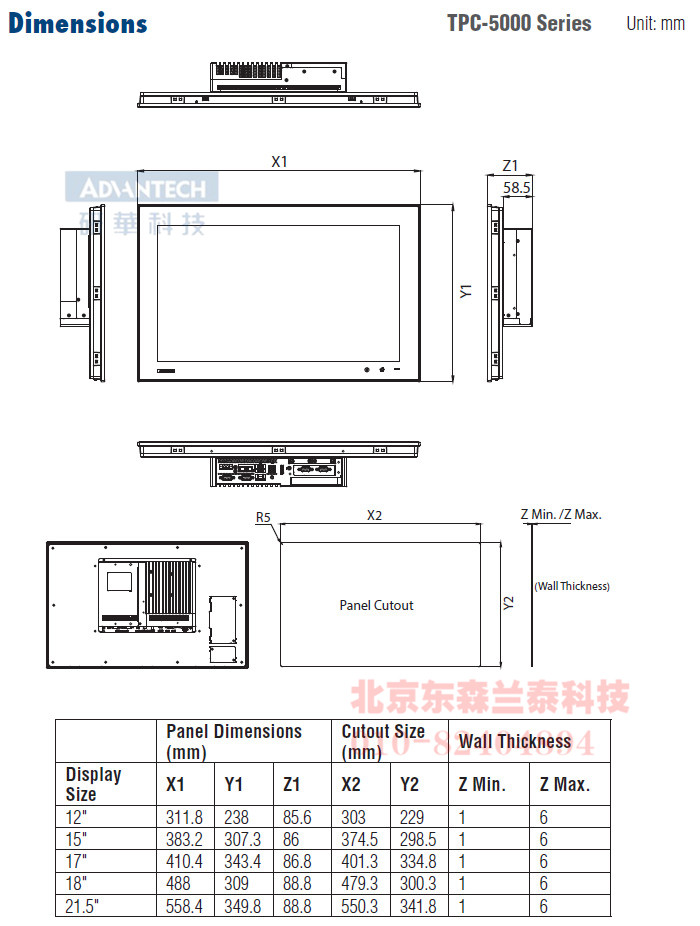

尺寸(单位:mm)




I/O Appearance
