台式/壁挂式机箱

EPC-B1230



主要特点

Economic embedded system with 5 yrs longevity
ƒUltra Thin design with 35mm in height
Easy opening design, quick installation for additional peripherals
Shock-resistant 2.5" drive bay
Low power and low noise design
ƒLocking type DC power jack

产品介绍

Embedded Thin Mini-ITX Chassis (Barebone) Compatible with AIMB-201

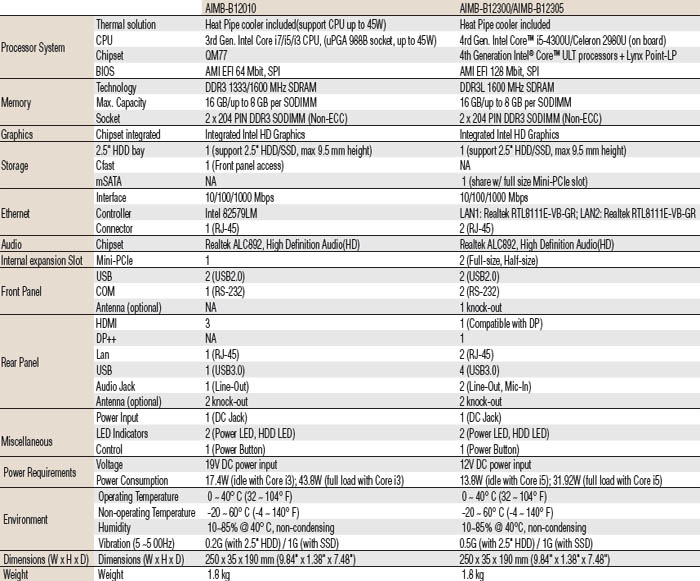

规格


订货信息

Parts Number Descripition LAN
AIMB-B12010-00Y1E CPU optional,barebone w/o power adapter 1
AIMB-B12300-00Y1E Celeron 2980U,barebone w/o power adapter 2
AIMB-B12305-00Y1E i5-4300U, barebone w/o power adapter 2
Optional Power Adaptor/ Power Cord
Compatibility Watts Output
Adapter DC 19V for AIMB-B1201 65W DC 19V, 3.42A
Adapter DC 19V for AIMB-B1201 90W DC 19V, 4.74A
Adapter DC 12V for AIMB-B1230 60W DC 12V, 5.0A
Adapter DC 12V for AIMB-B1230 84W DC 12V, 7.0A
Packing List
Description  Quantity
MB startup manual  1
MB utility CD  1
Mounting Bracket (PN: 1960014487T001)  1
Lock harness for power Jack (PN:
1990021263S000+1990021264S000)
1

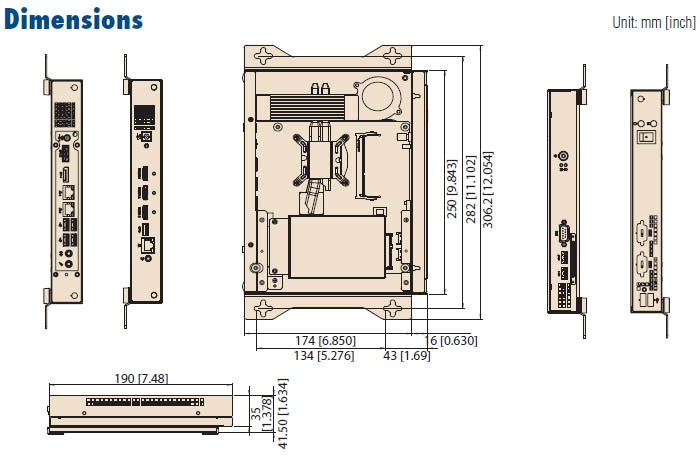

尺寸

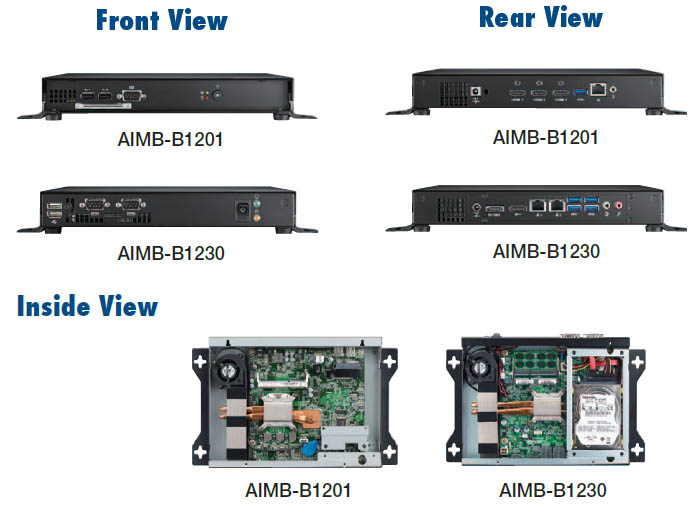

视图
