台式/壁挂式机箱

EPC-T1225



主要特点

Lock type DC power jack
Support Wall/ VESA/ Din Rail/ Rack mounting module
Shock-resistant one 2.5" drive bay
Easy/ quick installation for additional peripherals
Thin barebone system with multi-IO ports is suitable for variety of application environments with DC-in design
Thin design with 43mm in height

产品介绍

43mm height, thin barebone system for low profile Mini-ITX MB with Dc-in design


规格


订货信息

Model Name Parts Number Supported MB
EPC-T1215 AIMB-T1215DA-00Y0E AIMB-215D-S6B1E
EPC-T1215 AIMB-T1215DW-00Y0E AIMB-215D-S6B1E
EPC-T1225 AIMB-T12250A-00Y0E AIMB-225G2-00A1E
EPC-T1225 AIMB-T12251W-00Y0E AIMB-225G2-00A1E
EPC-T1231 AIMB-T12315A-00Y0E AIMB-231G2-U5A1E
EPC-T1231 AIMB-T12313A-00Y0E AIMB-231G2-U5A1E
Packing List
Description  Quantity
Warranty Card  1
SATA Data+Power Cable  1
Power cable clamp  1
Rubber Feet Pad  4
Screw (For HDD)  6
Reserved Screw  2
Adapter  Base on P/N
Optional Accessories
Part Number  Description
AIMB-0BRK-WM02E  Wall Mounting Bracket
AIMB-0BRK-VM03E  VESA Mounting Bracket
AIMB-0BRK-DR02E  Din Rail Mounting Bracket
AIMB-0BRK-RM01E  Rack mount bracket
1700023474-01  2 ports USB cable for front panel, 345mm
1700022991-01  2 ports USB cable for rear panel, 100mm
1700022988-01  4 ports COM Cable for front panel, 130+170+210+250mm
1700022990-01  1 prot COM Cable for rear panel, 150mm
1700022992-01  2 ports Audio Cable for front panel, 200mm
96PSA-A60W12V1-1  60W Power Adapter, DC 12V/ 5.0A, AC 100-240VAC/ 1.5A 50-60Hz
96PSA-A84W12V1  84W Power Adapter, DC 12V/ 7.0A, AC 100-240VAC/ 1.3A 50-60Hz
1702002600  Power cord, 3-pin power cord (US)
1702002605  Power cord, 3-pin power cord (EU)
1702031801  Power cord, 3-pin power cord (UK)
1700000237  Power cord, 3-pin power cord with PSE (Japan)
1700000596  Power cord, 3-pin power cord (CCC)




尺寸

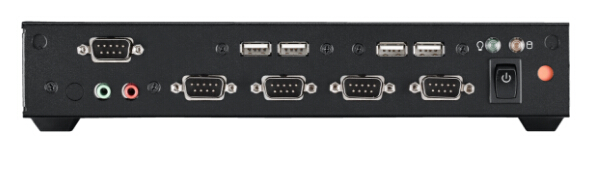

视图
