产品介绍
5U 20槽上架式机箱，6个热插拔的SAS / SATA硬盘托架，冗余电源
规格
| Drive Bay | Front-accessible | ||
| 3.5" | 6 SAS/SATA HDDs + 1 | ||
| 5.25" | 1 | ||
| Slim Optical Disk Drive | 1 | ||
| Cooling | Fan | 3 (12 cm/114 CFM each) + 2 (8 cm/47 CFM each) for SAS/SATA storage unit | |
| Blower | 2 (25 CFM each) on rear | ||
| Air Filter | Yes | ||
| Front I/O Interface | USB | 2 | |
| PS/2 | 1 | ||
| Miscellaneous | Notification LEDs | Power, HDD, Fan, Temperature and Power voltage status | |
| Rear Panel | Two 9-pin D-Sub openings | ||
| Environment | Operating | Non-Operating | |
| Temperature | 0 ~ 40° C (32 ~ 104° F) | -20 ~ 60° C (-4 ~ 140° F) | |
| Humidity |
10 ~ 85% @ 40°C, non-condensing |
10 ~ 95% @ 40°C, non-condensing |
|
| Vibration (5 ~ 500 Hz) | 1 Grms | 2 G | |
| Shock | 10 G (with 11 ms duration, half sine wave) 30 G | ||
|
Physical Characteristics |
Dimensions (W x H x D) | 482 x 222 x 662 mm (19" x 8.75" x 26") | |
| Weight | 30 kg (66 lb) | ||

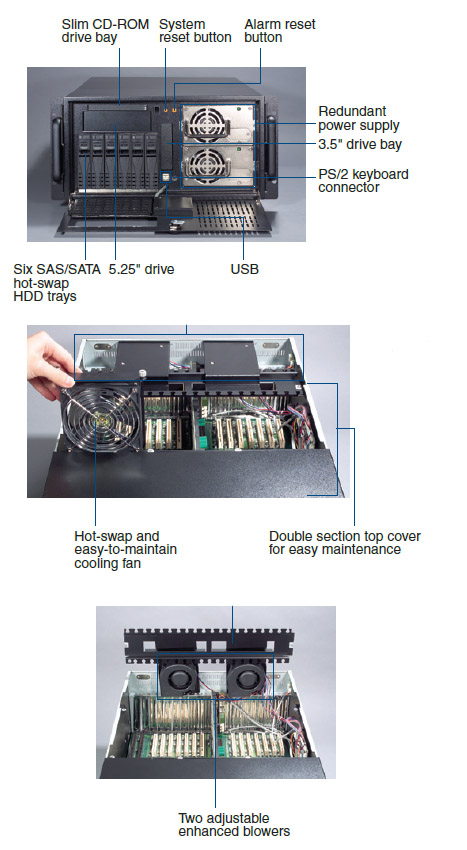

机箱图片
尺寸图片
订货信息
| Part Number | Power Supply | |
| ACP-5360BP-00RE | Barebone Chassis Supports 460W/ 570W / 810W RPS,with ATX switch | |
| Part Number | Watt | Input |
|
1757001760 (ATX, PFC) (1+1 redundant) |
460 W | AC 100 ~ 240 V (full range) |
|
1757001761 (ATX, PFC) (2+1 redundant) |
570 W | AC 115 ~ 230 V (full range) |
|
1757001677 (ATX, PFC) (3+1 redundant) |
810 W | AC 115 ~ 230 V (full range) |
| Part Number | Description | |
| 9892526000E | Motherboard rear plate kit | |
| 2130004797S000 | Door filter for power supply 155 x 100 x 5 mm | |
| 2130004794S000 | Door filter for disk drives 175 x 127 x 5 mm | |
| 9662700020E | Black 3.5" mobile HDD tray | |
| 2130004798S000 | Side filter 107 x 42 x 5 mm | |
| 1700011772 | SATA power wire 6-pin to big 4-pin (for slim ODD) | |
| 96RC-SAS-4P-PE-LS | Interface PCIe x 8, 4-port SAS/SATA RAID card with 1 SAS SFF8087 connector | |
| 96RC-SAS-8P-PE-LS1 | Interface PCIe x 8, 8-port SAS/SATA RAID card with 2 SAS SFF8087 connectors | |
| 96CB-SAS-SATA-4P | Mini SAS to 4 SATA + SGPIO cable, 0.8 m | |
| PS. When choosing either of above RAID cards, please must use 96CB-SAS-SATA-4P to ensure the LEDs on HDD trays function correctly. | ||
