产品介绍
Cost Effective Compact 1U Rackmount Chassis for Half-size SBC
规格
| Drive Bay | Internal | ||
| 2.5" | 2 | ||
| Cooling | Fan | 1 (4 cm / 6.5 CFM) | |
| Air Filter | Yes | ||
|
Front I/O Interface |
USB | 2 | |
| Miscellaneous | LED Indicators | Power, HDD | |
| Rear Panel | Two 9-pin D-Sub openings | ||
| Environment | Operating | Non-Operating | |
| Temperature | 0 ~ 40° C (32 ~ 104° F) | -40 ~ 70° C (-40 ~ 156° F) | |
| Humidity |
10 ~ 95% @ 40°C, non-condensing |
10 ~ 95% @ 60°C, non-condensing |
|
| Vibration (5 ~ 500 Hz) | 1 Grms | 2 G | |
| Shock | 10 G (with 11 ms duration, half sine wave) | ||
|
Physical Characteristics |
Dimensions (W x H x D) |
480 x 44 x 300 mm (19" x 1.7" x 11.8") | |
| Weight | 3.1 kg (6.82 lb) | ||

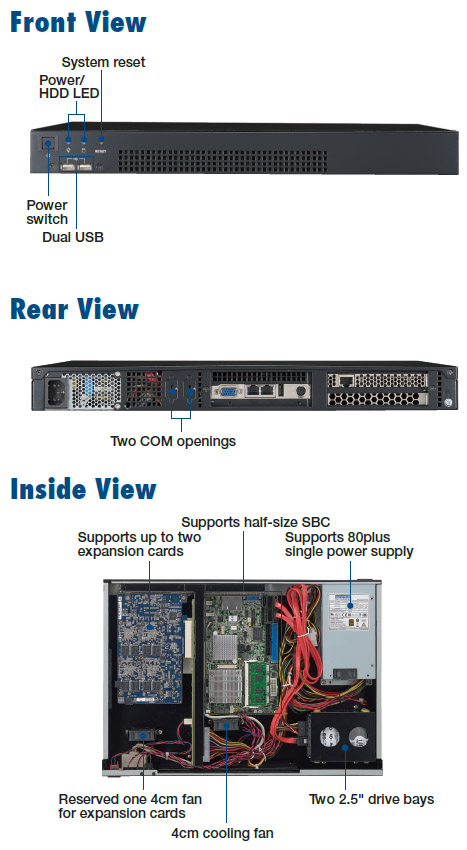

机箱图片
*注：背板，SBC，主板，电源和附加卡不包括在内。

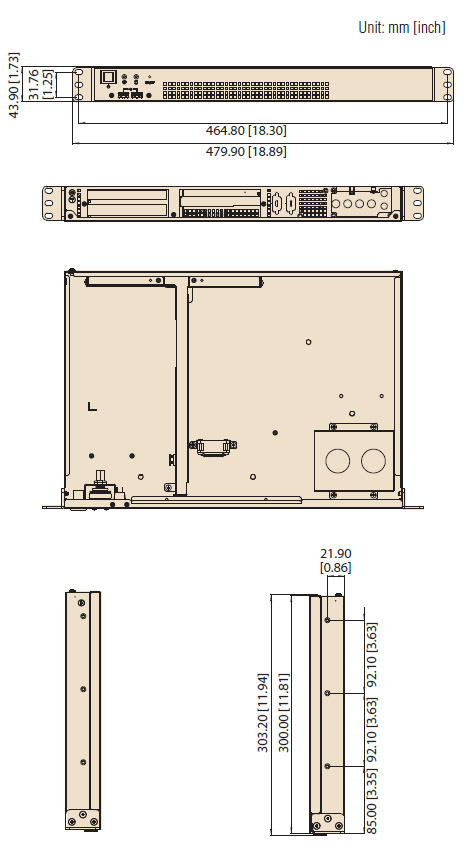

尺寸图片
订货信息
| Part Number | Description | |||
| IPC-120BP-00XE | W/O power supply , with ATX switch | |||
| PCI-7031DF-S6A1E | PCI-7031 Half-sized SBC Atom D510 w/PCIex4(for IPC-120) | |||
| PCI-7103P1V-01A1E | PCI Half-Size BP, 3 slot, 1 PCI, 1 PCIex4 | |||
| Part Number | 80 Plus Grade | Wattage | Type | Input |
| PS8-250FATX-XE | Bronze | 250W | Single | AC 100 ~ 240V( full range ) |
| PSB-350FATX-XE | Bronze | 350W | Single | AC 100 ~ 240V( full range ) |
| Part Number | Description | Quantity | ||
| 2130014149T000 | Fan Filter for IPC-120 | |||
| Optional FAN Upgrade Kit | ||||
| 1750006377 | Fan | 1 | ||
| 1962601090 | Fan Guard | 1 | ||
| 1960019654N00B | Fan Holder | 1 | ||
| 1930000074 | Screws for fixing Fan and Fan Guard | 4 | ||
| 1933030500 | Screws for fixing Fan assembly | 2 | ||
