上架式机箱

IPC-623



主要特点

4U rackmount chassis supports up to 4 multi-systems
Front-accessible redundant power supply
Shockproof disk drive bay design can hold up to three front-accessible 5.25" and one 3.5" disk drives, and one internal 3.5" HDD
Three 12 cm / 114 CFM ball-bearing cooling fans
Front LEDs and audible alarm notifications for system power status, fan operation, HDD status, and in-chassis temperature monitoring
Dual top cover designed for easy maintenance
Five easily replaceable air filters provide good airflow
Redundant power supplies are all with dual AC inputs

产品介绍

4U 20槽容错式工业控制计算机


规格

磁盘驱动器   可前置 可内置
3.5" 1 1
5.25" 3
冷却系统 风扇 3 (热插拔,114 CFM/each)
防尘过滤网 4 (200 mm x 45 mm) + 1 (128 mm x 95 mm)
其他 LED指示灯 系统状态显示(电源,风扇,硬盘,温度)
系统电源显示 +5 V, +12 V,-5 V,-12 V,和 +3.3 V
开关 电源,系统复位,报瞥复位
压条 带橡胶垫紧固压条
外观 尺寸(WxHxD) 482 x 177 x 660 mm (19" x 7” x 26")
重置 26 kg (57 lb)

订货信息

型号 规格
IPC-623BP-00RBE CHASSIS, 4U chassis w/o RPS w/o B/P
IPC-623BP-00XBE CHASSIS, 4U chassis w/o SPS w/o B/P
IPC-623BP-40ZBE CHASSIS, IPC-623BP w/o BP With Single 400W P/S RoHS
存储设备选型表
型号 规格
1999000480 S de filler 45 x 200 x 6 mm
1999000490 Front filter 130 x 95 x 6 mm
96FDD-144-TE-B Back 3.5" FDD
96CD-52X-I-AS-B2 Back 5.25" 52X CD-ROM
96DVR-40X-I-AS-B Back 5.25" 16X/40X/24X DVDRW-ROM
电源选型表
型号 功率
1757000131 (snge P/S) 400 W (ATX, PFC)
1757000133 (snge P/S) 500 W (ATX, PFC)
1757000197 (1+1 redundant) 460 W (ATX, PFC)
1757000127 (2+1 redundant) 570 W (ATX, PFC)
1757000128 (3+1 redundant) 810 W (ATX, PFC)

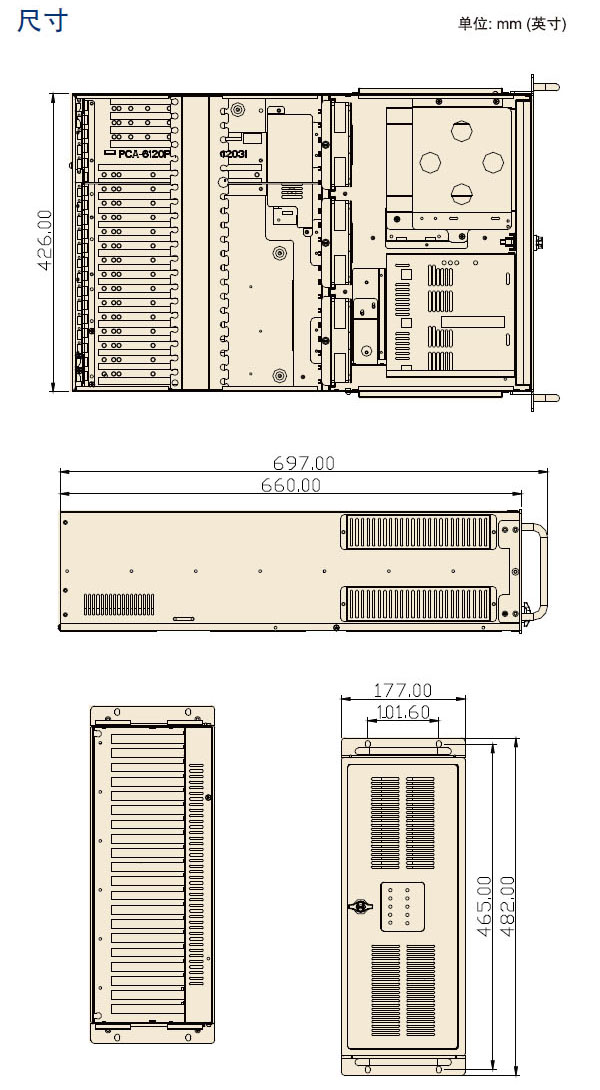

尺寸

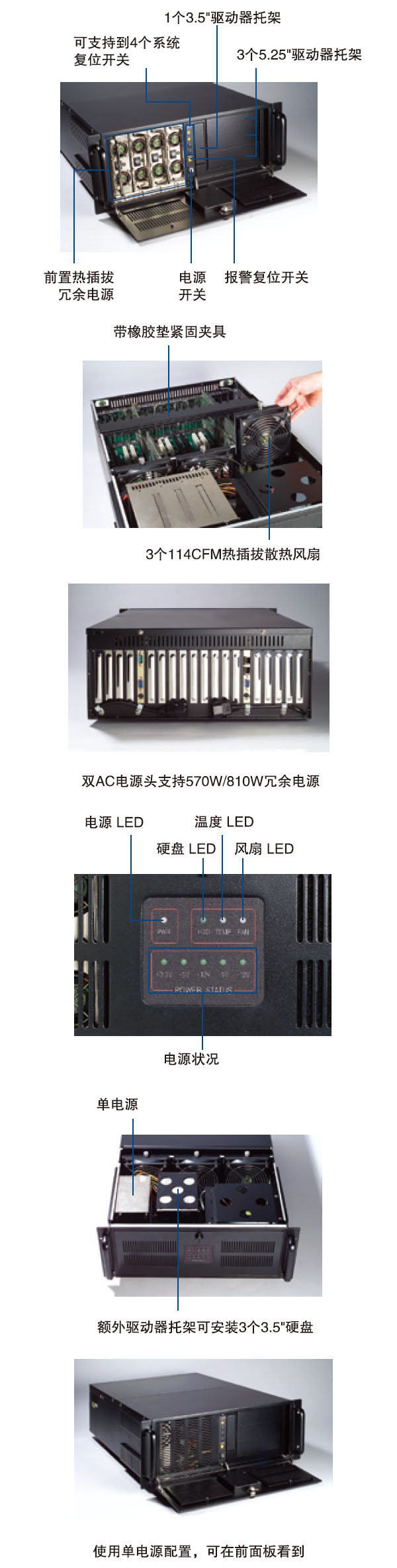

视图
