工业ATX主板

AIMB-227



主要特点

Supports Intel® Core™ i7/i5/i3 LGA1151 processors with H110 chipset
Dual Channel (Non-ECC) DDR4 1866/2133 up to 64 GB
Supports USB 3.0, SATA3.0
Dual display with VGA and DVI-D/DP (optional)
Supports Advantech LPC modules
Supports SUSIAccess and embedded software APIs



产品介绍

LGA1151 6th and 7th Generation Intel® Core™ i7/i5/i3/Pentium/Celeron System Host Board with VGA/DVI/DP and Dual GbE LAN


规格


订货信息

Part Number CPU Display TPM eDP/LVDS PCIe Slot USB 3.0/2.0
AIMB-227MG2-00A1E RX-421BD DP/eDP/LVDS, DVI-D, HDMI x8 4/4
AIMB-227MG2-01A1E RX-216GD DP/eDP/LVDS, DVI-D, HDMI x8 4/4
AIMB-227PG2-02A1E GX-224IJ DP/eDP/LVDS, DVI-D x4 4/4
Note: Passive = fanless; Active = with fan *() BOM options available on MP version.
Packing List
Part Number Description       Quantity
1700003194 SATA HDD cable     1
1700018785 SATA power cable     1
1700008876 1-to-4 serial ports cable kit, 35 cm     1
1700100250 1-to-1 serial ports cable kit, 25 cm
1960078398T000 I/O port bracket     1
1960054541N031 CPU Cooler (CPU TDP 名 35W); RX-421BD     1
1960083981N001 CPU Heatsink (CPU TDP<= 15W); RX-216GD, GX-224IJ 1
2006022700 Startup manual     1
Optional Chassis
Part Number Description
AIMB-B22270G-00YE EPC-B2227 W/ RX-421BD Barebone system
AIMB-T1227A-00YE EPC-T1227 W/ RX-216GD Barebone system
Optional Accessories
Part Number Description
1700020277-01 Dual port USB 3.0 cable 30cm with IO bracket
1700026162-01 USB 2.0 cable with two ports, 30 cm with bracket
1700023474-01 2 port USB cable, F10p/2.0, lock 10-pin(right-up), 345 mm
1700025573-01 USB 3.0 Cable A CABLE USB 3.0 A/M*2/2*10P 2.0 90D 20CM
1700023082-11 A cable 2*10P-4.2/1*3P-2.015cm
96PSA-A84W12V1 ADAPTER AC100~240V 84W +12V/7A (FSP)
96PSA-A60W12V1-1 ADAPTER AC100~240V 60W +12V/5A (FSP)
1702002600 Power cable 3-pin 180 cm,USA type
1702002605 Power cable 3-pin 180 cm, Europe type
1702031801 Power cable 3-pin 180 cm, UK type
1700000237 Power cable 3-pin PSE Mark 183 cm
1700000596-11 Power cable 3-pin 180 cm, China type
Embedded OS
Part Number  Description
20706WX6VS0002 img W10 16VL AIMB-227 64b 1709 ENU (Merlin Falcon)
20706WX6ES0003 img W10 16EL AIMB-227 64b 1709 ENU (Brown Falcon, Prairie Falcon)

尺寸(单位:mm)

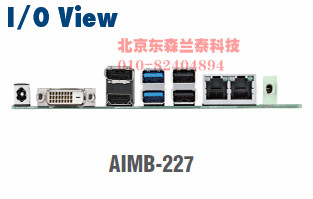

I/O Appearance
