主要特点
1.High perf. Zen CPU 4 核 / 8 threads & 32GB DDR4 SODIMM
2.Vega GPU支持11个计算单元和4K 4显
3.支持8 x PCIe, 2 x M.2扩展槽，6 x COM, 4 x USB 2.0, 2 x USB 3.1 x Gen2连接器
4.支持WISE-PaaS/RMM和嵌入式软件API
5.支持12-24V宽压直流电
|
|
产品介绍
AMD V系列四核mini-ITX具有4 x DP, 6 x USB, 6 x COM和12-24V直流电
规格
订货信息
|
Part Number |
CPU |
Display |
PCIe Slot |
USB 3.1/2.0 |
GbE |
COM |
|
AIMB-228VG2-00A1E |
V1807B |
DP/LVDS, DR DR DP |
x8 |
2/4 |
2 |
6 |
|
AIMB-228VG2-02A1E |
V1605B |
DP/LVDS, DP DP DP |
x8 |
2/4 |
2 |
6 |
|
AIMB-228VG2-03A1E |
V1202B |
DP/LVDS, DP DP DP |
x8 |
2/4 |
2 |
6 |
|
AIMB-228RG2-00A1E |
R1606G |
DP/LVDS, DP DP |
x4 |
2/4 |
2 |
6 |
|
AIMB-228RG2-01A1E |
R1505G |
DP/LVDS, DP DP |
x4 |
2/4 |
2 |
6 |
|
AIMB-228RG2-02A1E |
R1305G |
DP/LVDS, DP DP |
x4 |
2/4 |
2 |
6 |
|
AIMB-228RG2-03A1E |
R1102G |
DP/LVDS, DP |
NA |
2/4 |
2 |
6 |
|
*() BOM options available on MP version. |
|
|
|
|
|
|
Packing List |
|
|
|
|
|
|
|
Part Number |
Description |
|
|
|
|
Quantity |
|
1700003194 |
SATA HDD cable |
|
|
|
|
1 |
|
1700018785 |
SATA power cable (1 port, 25cm) |
|
|
|
1 |
|
1700022363-01 |
1-to-1 serial port cable 17CM |
|
|
|
2 |
|
1960091400T001 |
I/O port bracket |
|
|
|
|
1 |
|
2046022800 |
Startup manual |
|
|
|
|
1 |
|
1960089783T001 |
CPU Cooler (CPU TDP 54W, V1807B) |
|
|
|
1 |
|
1960089784T001 |
CPU Cooler (CPU TDP 25W,V1605B/ V1202B/R1606G/R1505G/R1305G/R1102G) |
1 |
|
Optional Chassis |
|
|
|
|
|
|
|
Part Number |
Description |
|
|
|
|
|
|
AIMB-B2000-00YE |
AIMB-B2000 wallmount chassis w/o adaptor |
|
|
|
|
Optional Accessories |
|
|
|
|
|
|
|
Part Number |
Description |
|
|
|
|
|
|
1700029538-01 |
F Cable D-SUB 9P(M)*4/IDE#2 40P-1.27 35CM |
|
|
|
|
96PSA-A150W12W7-3 |
ADP A/D 100-240V 150W 12V LOCKABLE DC JACK |
|
|
|
|
1702002600 |
Power cable 3-pin 180 cm,USA type |
|
|
|
|
|
1702002605 |
Power cable 3-pin 180 cm, Europe type |
|
|
|
|
|
1702031801 |
Power cable 3-pin 180 cm, UK type |
|
|
|
|
|
1700000237 |
Power cable 3-pin PSE Mark 183 cm |
|
|
|
|
|
1700000596-11 |
Power cable 3-pin 180 cm, China type |
|
|
|
|
|
Embedded OS |
|
|
|
|
|
|
|
OS |
Part No. |
968 P/N |
Description |
|
|
|
Win10 |
20706WX9VS0039 |
968QW19VLE |
img W10 19VL AIMB-228 64b 1809 ENU (V1807B/V1605B) |
|
Win10 |
20706WX9ES0049 |
968QW19ELE |
img W10 19EL AIMB-228 64b 1809 ENU (V1202B/R1606G/ R1505G) |
尺寸(单位:mm)

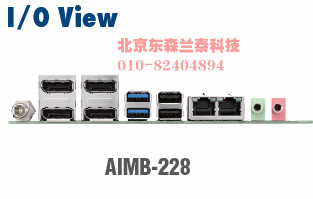

I/O Appearance
|
