主要特点
Intel® 第八代 Whiskey Lake Core i-ULT ™i7/i5/i3/Celeron BGA 1528 Mini-ITX工业主板 2 x DDR4
支持独立三显：Type C/HDMI/LVDS(eDP）
支持6 COM，双intel千兆网络，miniPCIe，M.2，PCIex1
DCIN
|
|
产品介绍
Intel® 第八代 Whiskey Lake Core i-ULT ™i7/i5/i3/Celeron BGA 1528 Mini-ITX工业主板
规格
订货信息
|
Order Number |
CPU |
|
|
|
|
|
|
AIMB-233G2-U7A1E |
i7-8665UE |
|
|
|
|
|
|
AIMB-233G2-U5A1E |
i5-8365UE |
|
|
|
|
|
|
AIMB-233G2-U3A1E |
i3-8145UE |
|
|
|
|
|
|
AIMB-233G2-U0A1E |
Celeron 4305UE |
|
|
|
|
|
|
Packing List |
|
|
|
|
|
|
|
Part Number |
Description |
|
|
Quantity |
|
|
1700003194 |
SATA HDD cable |
|
|
2 |
|
|
|
1700018785 |
SATA Power cable |
|
2 |
|
|
|
1700022363-01 |
1-to-1 serial port cable kit, 17cm |
2 |
|
|
|
1700029538-01 |
1-to -4 serial port cable, 35cm |
1 |
|
|
|
2046023300 |
Startup manual |
|
|
1 |
|
|
|
1960062823N011 |
Fanless Heat Sink |
|
|
1 |
|
|
|
1960095272T001 |
IO port bracket |
|
|
1 |
|
|
|
Optional Accessories |
|
|
|
|
|
|
|
Part Number |
Description |
|
|
|
|
|
|
96PSA-A120W12P4 |
ADP A/D 100-240V120W12V C14 TERMINAL BLOCK 4P |
|
|
96PSA-A220W24P4-1 |
ADP A/D 100-240V 220W 24V C14 TERMINAL BLOCK 4P |
|
|
1700025084-01 |
ATX 5Vsb 3pin power cable |
|
|
|
|
|
1702002600 |
Power cable 3-pin 180 cm,USA type |
|
|
|
|
1702002605 |
Power cable 3-pin 180 cm, Europe type |
|
|
|
|
1702031801 |
Power cable 3-pin 180 cm, UK type |
|
|
|
|
1700000237 |
Power cable 3-pin PSE Mark 183 cm |
|
|
|
|
1960084865N001 |
Fan Cooler |
|
|
|
|
|
|
1700029719-01 |
USB3.0 cable |
|
|
|
|
|
|
1700024790-01 |
USB 2.0 cable |
|
|
|
|
|
|
OS/API |
Part No. Description |
|
|
|
|
|
Windows 10 |
20706WX9ES0097 img W1019EL AIMB-233 64b 1809 ENU |
|
|
Windows 10 |
20706WX9HS0083 img W10 19HL AIMB-233 64b 1809 ENU |
|
Windows 10 |
20706WX9VS0087 img W10 19VL AIMB-233 64b 1809 ENU |
尺寸(单位:mm)

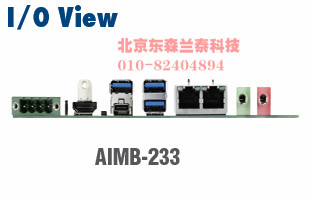

I/O Appearance
|
