主要特点
Supports 10th Generation Intel® Core™ i processor (LGA1200) with Intel Q470E chipset
Two 260-pin SO-DIMM up to 64GB DDR4 2933 MHz SDRAM
Supports triple display of HDMI 2.0a/DP++/VGA/LVDS( or eDP)
Supports PCIe x16 (Gen 3), 1x M.2 M key + 1x M.2 E key, 4x USB 3.2 Gen2 + 4x USB 3.2 Gen1, and 4x SATA III
Supports Intel vPro, AMT, Software RAID 0,1,5,10, TPM 2.0, 3.2W Amplifier
Supports ATX power
Supports WISE/DeviceOn and Embedded Software APIs
|
|
产品介绍
10th Gen Intel® Core™ i7/i5/i3 LGA1200 Mini-ITX w/ HDMI2.0a/DP/VGA/LVDS(or eDP), 2x COM, Dual LAN, 4x SATAIII, 4x USB3.2 Gen2, 4x USB3.2 Gen1, 2x M.2

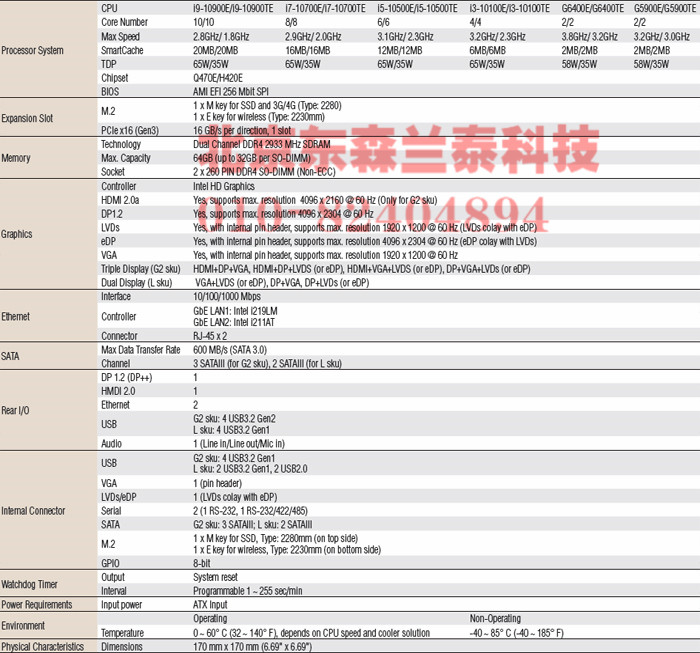

规格
订货信息
|
P/N |
Chipset |
HDMI 2.0 |
LVDS/eDP |
COM |
SATAIII |
TPM2.0 |
|
AIMB-277G2-FLA1E |
Q470E |
1 |
1/(1) |
2 |
3 |
1 |
|
AIMB-277G2-00A1E |
Q470E |
1 |
1/(1) |
2 |
3 |
0 |
|
AIMB-277L-00A1E |
H420E |
0 |
1/(1) |
2 |
2 |
(1) |
|
*() BOM options available on MP version. |
|
|
|
|
|
Part Number |
Description |
|
Quantity |
|
|
|
1700003194 |
SATA HDD cable |
|
1 |
|
|
|
1700018785 |
SATA power cable (1 port, 25cm) |
1 |
|
|
|
TBD |
1-to-1 serial port cable, 22cm |
1 |
|
|
|
TBD |
I/O port bracket |
|
1 |
|
|
|
TBD |
Startup manual |
|
1 |
|
|
|
Optional Chassis |
|
|
|
|
|
|
|
Part Number |
Description |
|
|
|
|
|
AIMB-B2000-15ZE |
Mini-ITX chassis with 150W ATX power supply |
|
|
|
Optional Accessories |
|
|
|
|
|
|
|
Part Number |
Description |
|
|
|
|
|
Part Number |
Description |
|
|
|
|
|
1700020277-01 |
Dual port USB 3.0 cable 30cm with IO bracket |
|
|
|
1960053207N001 |
LGA1150 CPU cooler for CPU TDP ^ 65W, 92.9 (W) x 92.9 (L) x 46 (H) mm |
|
1960060732N001 |
LGA1150 CPU cooler for CPU TDP 专 45W, 80 (W) x 80 (L) x 32.2 (H) mm |
|
1970004515T000 |
C丄 R3 Sunflower LGA115X KabyLake 35W 90x90x25 |
|
|
Embedded OS/API |
|
|
|
|
|
|
|
OS/API |
Part No. |
968 P/N |
|
Description |
|
|
Windows 10 |
IItbd |
968QW19ELE |
TBD |
|
|
|
Windows 10 |
TBD |
968QW19HLE |
TBD |
|
|
|
Windows 10 |
||tbd |
968QW19VLE |
TBD |
|
|
尺寸(单位:mm)
I/O Appearance
-
|
