工业ATX主板

AIMB-707



主要特点

Intel® 10th generation Core™ i9/i7/i5/i3 & Pentium®/Celeron® processor with H420E chipset
Dual channel (Non-ECC) DDR4 2400/2666/2933 up to 64 GB
Support VGA and DVI display
M.2, SATA 3.0, USB 3.2, dual GbEs
5 RS-232 and 1 RS-232/422/485 serial ports
1 PCIe x16 (Gen 3) and 2 PCIe x4 (x1 Gen 3 link), and 4 PCI expansion slots
Note: Legacy platform is not supported.



产品介绍

LGA1200 10th Generation Intel® Core™ i9/i7/i5/i3 & Pentium®/Celeron® ATX with DVI/VGA, DDR4, USB 3.2, M.2, 6 COMs

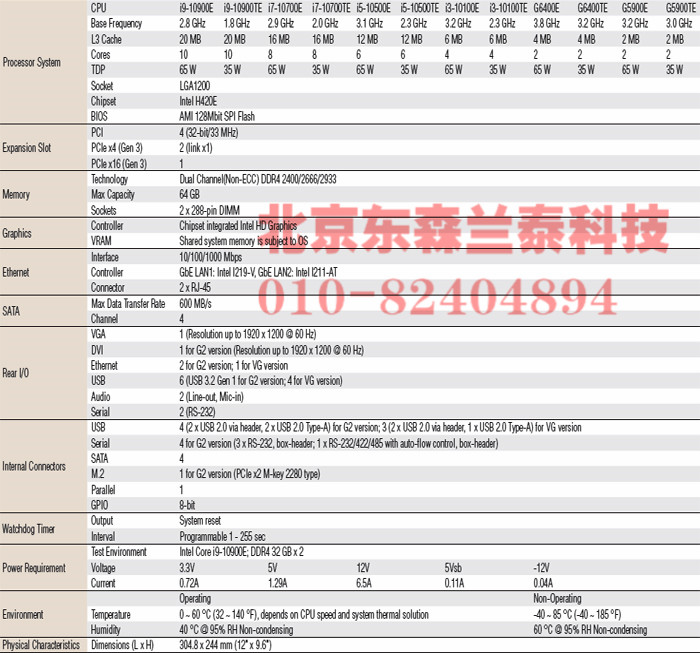

规格


订货信息

Part Number Chipset Memory Display USB 3 USB 2.0 COM GbE  LAN
AIMB-707G2-00A1 H420E Non-ECC VGA + DVI 6 4 6 2
AIMB-707VG-00A1 H420E Non-ECC VGA 4 3 2 1
Packing List
Part Number Description Quantity
1700003194 SATA HDD cable x2
1960097974T001 I/O port bracket x1
2041070700 Startup manual x1
Note: Driver CD is not provided. Please visit Advantech support website for driver download.
Optional Accessories
Part Number Description
1701090401 Single COM port cable(40 cm)
1701092300 Dual COM port cable(28.5 cm)
1700022749-11/
1700022749-12/ SATA power cable
1700022749-13
1700019268-11 PS/2 KB/Mouse cable
1960063434N000 IO bracket for PS/2 KB/Mouse cable
1700002204 2-port USB 2.0 cable w/ BKT(27 cm)
1960052651N021 CPU cooler for 2U, 4U, and wallmount chassis
1960049408N001 CPU heatsink for 1U chassis
TBD IO bracket for 1U chassis
PCA-COM232-00A1E 4-port RS-232 LPC module
PCA-COM485-00A1E 4-port RS-422/485 LPC module
PCA-TPM-00B1E TPM2.0 module
Note: Purchasing AIMB-707's proprietary CPU cooler from Advantech is a must. Other brands' CPU coolers are NOT compatible with AIMB-707.
Riser Card
Part Number Description
AIMB-RP10P-01A1E 1U riser card providing 1 PCI slot
AIMB-RF10F-01A1E 1U riser card providing 1 PCIe x 16 slot
AIMB-RP30P-03A1E 2U riser card providing 3 PCI slots
AIMB-RP3PF-21A1E 2U riser card providing 1 PCIe x 16 and 2 PCI slots

尺寸(单位:mm)

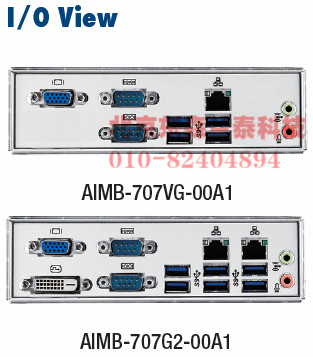

I/O Appearance
