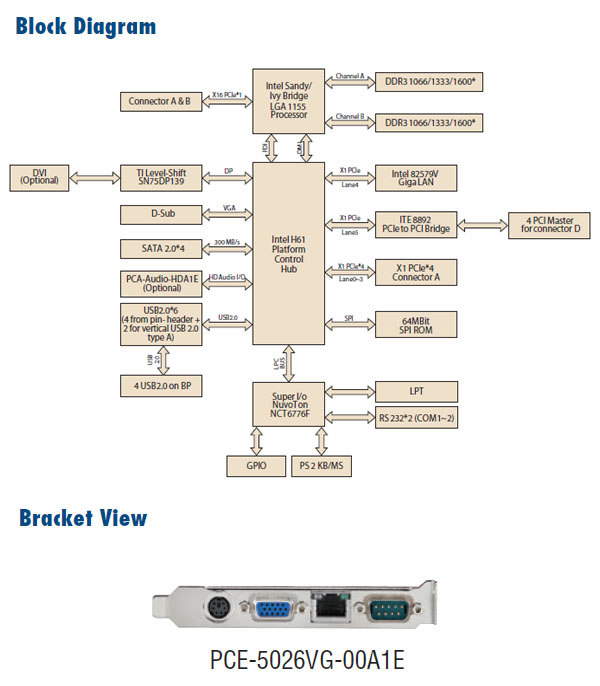

Processor System
|
CPU
|
Core
i7-3770
|
Core
i7-2600
|
Core
i5-3550S
|
Core
i5-2400
|
Core
i3-3220
|
Core
i3-2120
|
Pentium
G2120
|
Pentium
G850
|
Celeron
G540
|
|
Base Frequency
|
3.4 GHz
|
3.4 GHz
|
3.0 GHz
|
3.1 GHz
|
3.3 GHz
|
3.3 GHz
|
3.1 GHz
|
2.9 GHz
|
2.5 GHz
|
|
L3 Cache
|
8 MB
|
8 MB
|
6 MB
|
6 MB
|
3 MB
|
3 MB
|
3 MB
|
3 MB
|
2 MB
|
|
Chipset
|
Intel H61
|
|
BIOS
|
AMI 64Mbit SPI Flash
|
|
Bus
|
PCI Express
|
One PCIe x16, plus four x1 to backplane
|
|
PCI
|
Four 32-bit 33 MHz PCI Masters to Backplane
|
|
Memory
|
Technology
|
Dual channel(Non-ECC) DDR3 1066/1333/1600*(depends on CPU Spec.)
|
|
Max. Cap.
|
16 GB (8 GB per DIMM)
|
|
Socket
|
DDR3 240-pin DIMM x 2
|
|
Graphics
|
Controller
|
Chipset integrated Intel HD Graphics
|
|
VRAM
|
Shared system memory is subject to OS
|
|
Video Output
|
15 Pin VGA D-sub Connector x1/DVI-D connector x 1 (TPN optional)
|
|
Ethernet
|
Interface
|
10/100/1000 Mbps
|
|
Controller
|
Intel 82579V
|
|
Connector with LED
|
RJ45 x 1
|
|
SATA
|
SATA
|
SATA 2.0 x 4(300MB/sec)
|
|
Raid
|
-
|
|
I/O Interface
|
USB
|
Ten USB2.0(Pin-header*4+Vertical USB A type*2+ 4 on backplane)
|
|
Serial
|
1 x RS-232 Pin-Header; 1 x RS-232 COM port
|
|
Parallel
|
1 (SPP/EPP/ECP)
|
|
PS/2
|
1 (Y cable for mouse and keyboard is included in the package)
|
|
Watchdog Timer
|
Output
|
System
|
|
reset
|
|
Interval
|
Programmable 1-255 sec
|
|
杂项
|
Audio
|
Intel High Definition audio interface (required an audio extension module P/N: PCA-AUDIO-HDA1E)
|
|
Power Requirement
|
测试环境
|
Core i7-3770 (3.4 GHz) + DDR3 1066 4 GB x 2
|
|
Voltage
|
+12 V
|
+5 V
|
+3.3 V
|
+5 VSB
|
-12 V
|
-5 V
|
|
Current
|
5.92 A
|
0.9 A
|
2.01 A
|
0.22 A
|
0.02 A
|
0 A
|
|
Environment
|
Ambient Temperature
|
Operating
|
Non-Operating
|
|
0 ~ 60° C(32 ~ 140° F); Operating humidity: 40° C @ 85% RH Non-Condensing
|
-40 ~ 85° C and 60° C @ 95% RH Non-Condensing
|
|
Physical
|
Dimensions
|
338 mm (L) x 122 mm (W) (13.3" x 4.8")
|
