主要特点
Intel® Core™ i9/i7/i5/i3 LGA1200 processor with H420E chipset
Up to 64 GB of dual-channel (non-ECC) DDR4 2666/2933 MHz
PCIe 3.0, USB 3.2, and SATA 3.0 slots
Supports VGA and DVI-D/DP display (with optional cable)
Supports Advantech’s LPC modules, SUSIAccess, and embedded software APIs
|
|
产品介绍
LGA1200 10th Generation Intel® Core™ i9/i7/i5/i3/Pentium/Celeron System Host Board with DDR4, SATA 3.0, USB 3.2, Dual GbE, and Dual Displays
规格
订货信息
|
Part Number |
Chipset |
Memory |
Backplane |
LAN |
|
PCE-5032G2-00A1 |
H420E |
Non-ECC |
PCE-5BXX |
2 |
|
Note: DP/DVI-D cable is optional |
|
|
|
|
Packing List |
|
|
|
|
|
Part Number |
Description |
|
Quantity |
|
|
1700003194 |
Serial ATA HDD data cable |
x2 |
|
|
1701260305 |
COM + printer ports cable kit |
x1 |
|
|
2190000902 |
Warranty card |
|
x1 |
|
|
2041513200 |
Startup manual |
x1 |
|
|
Optional Accessories |
|
|
|
|
|
Part Number |
Description |
|
|
|
|
1700020277-01 |
2-port USB 3.0 cable w/ BKT (30 cm) |
|
|
|
1700002204 |
2-port USB 2.0 cable w/ BKT (27 cm) |
|
|
|
1700021831-01 |
DP to DVI-D cable w/ BKT for G2 SKU |
|
|
|
1701090401 |
Single COM cable (40 cm) |
|
|
|
1701092300 |
Dual COM cable (28.5 cm) |
|
|
|
1960049408N001 |
CPU cooler for 1U Chassis and 84W TDP |
|
|
1960050255N001 |
CPU cooler for 2U Chassis and 95W TDP |
|
|
1960052651N021 |
CPU cooler for 2U/4U Chassis and 80W TDP |
|
|
PCA-COM485-00A1E |
4-port RS-422/485 LPC module |
|
|
|
PCA-COM232-00A1E |
4-port RS-232 LPC module |
|
|
|
PCE-DP10-00A1E |
DP redriver board (25 cm) for G2 SKU |
|
|
|
PCA-AUDIO-HDB1E |
Extension module for HD audio |
|
|
|
PCA-TPM-00B1E |
TPM 2.0 Module |
|
|
|
PCE-SA01-00A1E |
Extension Stack Board |
|
|
|
* for PCE-7132/5132/5032, PCE-SA01-00A1E miniPCIe only support PCIex1 signal |
|
尺寸(单位:mm)

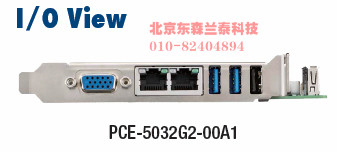

I/O Appearance
|
