主要特点
Intel® Core™ i7/i5/i3 LGA1151处理器，带Q370芯片组
双通道（非ECC）DDR4 2400/2666 MHz ，最大支持32GB
PCIe 3.0，M.2，USB 3.0，SATA 3.0和SW Raid 0, 1, 5, 10
支持外带远程管理（AMT）
支持研华LPC模块，SUSIAccess和嵌入式软件APIs
注1: 第八代Intel 处理器仅支持Windows 10 （64-bit）
|
|
产品介绍
LGA1151第八代Intel® Core™ i7/i5/i3/Pentium/Celeron系统主板 带DDR4, SATA 3.0, USB 3.1, M.2, 双 GbE和三显
规格
订货信息
|
Part Number |
PCH |
Memory |
Backplane |
LAN |
COM |
SATA III |
|
PCE-5131G2-00A1 |
Q370 |
Non-ECC |
PCE-5BXX |
2 |
2 |
5 |
|
Note: DP/DVI-D cable is optional |
|
|
|
|
|
|
Packing List |
|
|
|
|
|
|
|
Part Number |
Description |
|
Quantity |
|
|
|
|
1700003194 |
Serial ATA HDD data cable |
x2 |
|
|
|
|
1700022749-11 |
Serial ATA HDD power cable |
x1 |
|
|
|
|
1701260305 |
COM + printer ports cable kit |
x1 |
|
|
|
|
1700060202 |
Keyboard and mouse Y-cable |
x1 |
|
|
|
|
1700002204 |
2-port USB cable kit |
»1 |
|
|
|
|
2190000902 |
Warranty card |
x1 |
|
|
|
|
2001512910 |
Startup manual |
x1 |
|
|
|
|
2061512900 |
Utility CD |
|
x1 |
|
|
|
|
Optional Accessories |
|
|
|
|
|
|
|
Part Number |
Description |
|
|
|
|
|
|
1960049408N001 |
CPU cooler for 1U Chassis and 84W TDP |
|
|
|
|
1960050255N001 |
CPU cooler for 2U Chassis and 95W TDP |
|
|
|
|
1960052651N021 |
CPU cooler for 2U/4U Chassis and 80W TDP |
|
|
|
|
PCA-AUDIO-HDB1E |
|Audio module |
|
|
|
|
|
PCA-COM232-00A1E |
|4-port RS-232 LPC module |
|
|
|
|
|
PCA-COM485-00A1E |
4-port RS-422/485 LPC module |
|
|
|
|
|
1700031719-01 |
|4-port USB 3.0 cable w/ BKT (30cm) |
|
|
|
|
1700020277-01 |
2-poft USB 3.0 cable w/ BKT (30 cm) |
|
|
|
|
1700021831-01 |
DP to DVI-D cable w/ BKT |
|
|
|
|
|
PCE-DP10-00A1E |
DP to DP cable w/ BKT |
|
|
|
|
|
PCA-TPM-00B1E |
|TPM 2.0 Module |
|
|
|
|
尺寸(单位:mm)

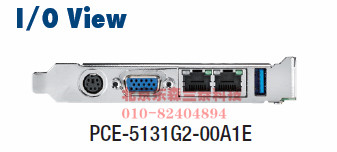

I/O Appearance
|
