主要特点
Rockchip ARM Cortex-A17 RK3288 Quad Core, up to 1.6GHz
Onboard 2GB DDR3L memory and 8GB eMMC
HDMI 3840x2160 at 60Hz, VGA 1920x1200 at 60Hz, Dual Channel 18/24/30 bit LVDS
Support 4K H.264/H.265 Video decoder
6 UART, 6 USB2.0, 1 GbE, 8 GPIO, 1 MIPI CSI, 1 SPI
M.2 for WIFI/BT support, mini-PCIe for 3G/4G support
|
|
产品介绍
RSB-4680 is a RISC 3.5" single board computer (SBC) powered by a high-performance Rockchip ARM Cortex-A17 RK3288 processor which supports 4K display from HDMI. It offers rich interfaces such as 6 USB2.0, 6 UART, 1 VGA, 1 LVDS, 1 GbE and 8 GPIO. RSB-4680 also features Mini-PCIe, M.2, and SIM card slots for integrating Wi-Fi, Bluetooth,and 4G modules. It is an ideal solution for Kiosk, POS, and Vending machine application.

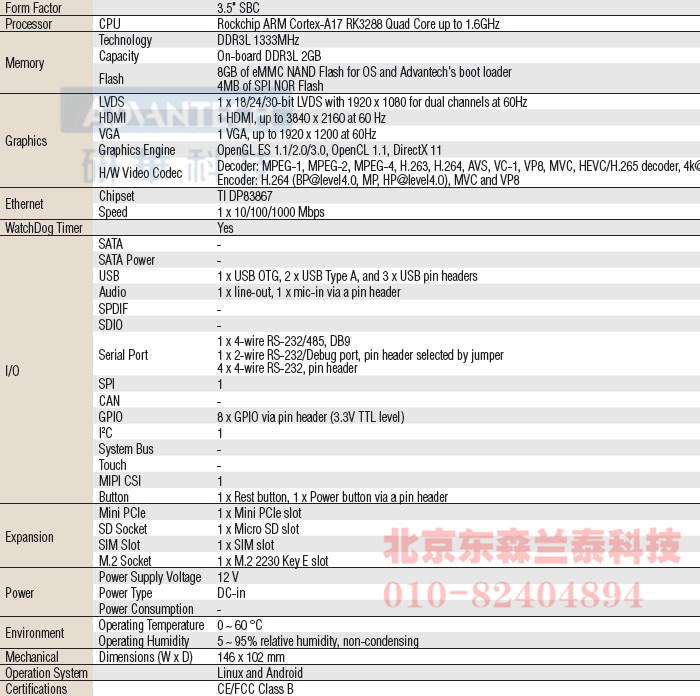

规格
订货信息
|
Ordering Information |
|
Part No. |
CPU |
|
RSB-4680CQ-XNA1E |
Rockchip RK3288 Quad core, 1.6GHz |
|
Packing List |
|
|
Part Number |
Description |
|
RSB-4680 |
RSB-4680 3.5'' SBC |
|
Optional Accessories |
|
Part Number |
Description |
|
96PSA-A36W12W7 |
ADP A/D 100-240V 36W 12V WO/PFC |
|
170203183C |
Power cord 3P Europe (WS-010+WS-083) 183 cm |
|
170203180A |
Power cord 3P UK 2.5A/3A 250 V 1.83 M |
|
1700001524 |
Power cord 3P UL 10A 125 V 180 cm |
|
1700019146 |
Power Cord CCC 3P 10A 250V 183cm |
|
1700021565-01 |
Debug cable |
|
EWM-W167M201E |
WIFI BT4.0 Module RTL8723BS SDIO |
|
1750007965-01 |
Antenna Cable R/P SMA (M) to MHF4, 300mm |
|
1750008671-01 |
Dipole Ant.SMA/M-R 2.4/5G 2.5/4dBi BLK 109mm |
|
968AD00081 |
Qucetel EC20CEFA Mini-PCIe 4G module |
|
1750006264 |
Antenna cable SMA(F)/MHF 15cm |
|
1750007990-01 |
Antenna 4G/LTE full band L=11 cm 50 Ohm |
|
SQF-MSDM1-8G-21C |
SQF MICRO SD C10 MLC 8G (-25 ~ 85 °C) |
|
IDK-1107WR-40WVA1E |
7" LED PANEL 2.5A/3A 250V 1.83cm400N with 4WR touch, 800 x 480 (G) |
|
1700028571-01 |
LVDS cable for IDK-1107WR |
|
1700028572-01 |
LCD blacklight cable for IDK-1107WR |
尺寸(单位:mm)

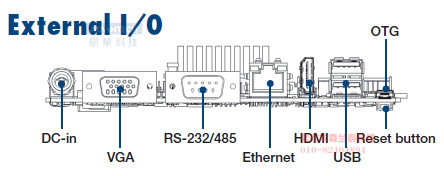

I/O Appearance
|
