主要特点
Support Intel Core i7/i5/i3/ Pentium / Celeron desktop processor (LGA) with Intel H61 chipse
Two 204-pin SO-DIMM up to 8GB DDR3 1066/1333/1600 MHz SDRAM
ƒSupports dual display for VGA, DVI
One expansion PCIe x4 slot (low profile)
Reserved 2USB, 4COM, and 2WLAN antenna punchouts on front panel
Two Shock Resistant 2.5" drive bays
|
|
产品介绍
Intel® 2nd & 3rd Generation Xeon E3/ Core™ i7/i5/i3/Celeron embedded PC

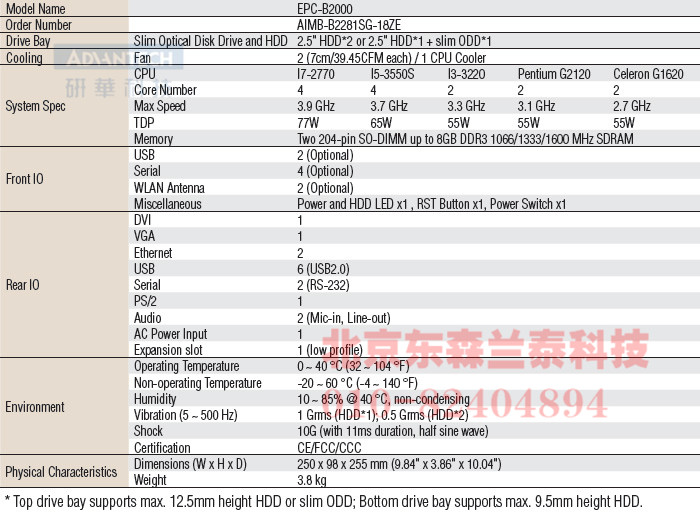

规格
订货信息
|
Ordering Information |
|
|
Model Name |
Part Number |
Power Supply |
|
EPC-B2000 |
AIMB-B2281SG-18ZE |
ATX 180W |
|
Power Supply Options |
|
|
Part Number |
Watts Input |
Watts Input |
|
96PS-A180WFX |
180 W |
AC 100 ~ 240 V |
|
Optional Accessories |
|
|
Part Number |
Description |
|
|
96SDVR-8X-ST-HL-B |
Slim DVD-ROM |
|
|
1700023474-01 |
2 port USB cable, F10p/2.0, lock 10-pin(right-up), 345 mm |
|
1700018971 |
SATA HDD cable for AIMB-226/231/281/203/274 |
|
1700011772 |
SATA power cable for slim ODD for AIMB-274/273/272/270/203 with AIMB-B2000-15ZE |
|
1700023646-01 |
SATA power cable for slim ODD for AIMB-231/230/225/224/223/215/214/213 with AIMB-B2000-00YE |
|
1700023647-01 |
SATA power cable for slim ODD for AIMB-212 with AIMB-B2000-00YE |
|
1700000596 |
Power cable 3-pin 183cm, China type |
|
1702031801 |
Power cable 3-pin 183cm, UK type |
|
1702002600 |
Power cable 3-pin 183cm, USA type |
|
1702002605 |
Power cable 3-pin 183cm, Europe type |

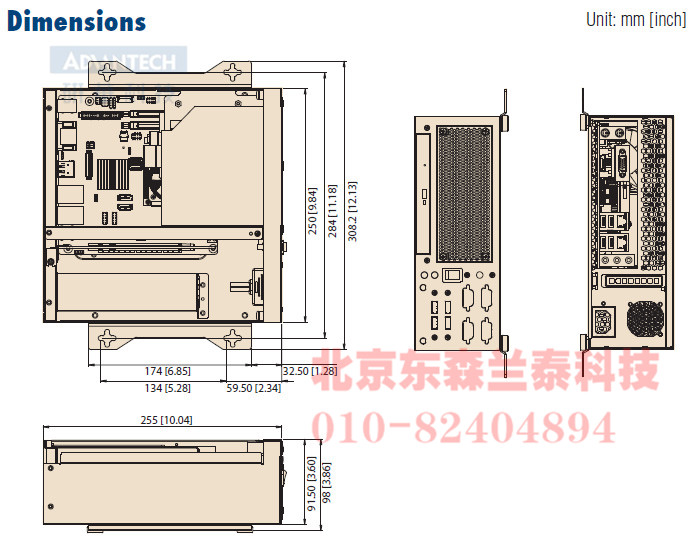

尺寸(单位:mm)

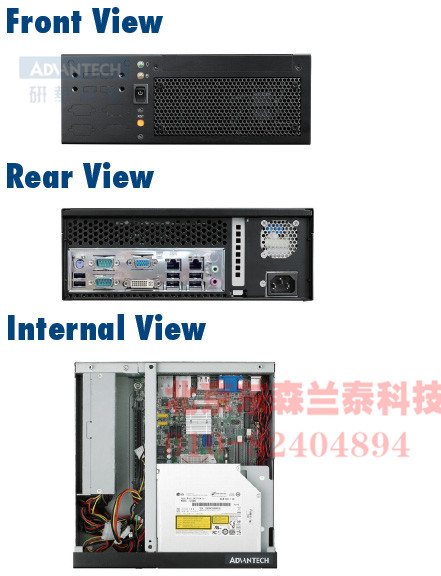

I/O Appearance
|
