主要特点
支持Intel® socket 478 Pentiu® m M/Celero® n M CPU
Intel 910GMLE/915GME + ICH6M
2个DIMM插槽，可支持高达2 GB的DDR2 400/533 SDRAM
支持双LVDS显示（可选）
支持双GbE LAN
5个串行端口
2个SATA，8个USB 2.0接口
|
|
产品介绍
Intel® Pentium® M/Celeron® M Mini-ITX带双LVDS, 5 COM和双千兆网口
规格
|
Processor System |
CPU (130/90 nm, μFC-PGA 478) |
Intel Pentium M |
Intel Celeron M |
Intel ULV Celeron M |
Intel ULV Celeron M |
|
Max. Speed |
2.0 GHz |
1.5 GHz |
600 GHz |
1 GHz |
|
Front Side Bus |
400/533 MHz |
400 MHz |
400 MHz |
400 MHz |
|
L2 Cache |
2 MB |
1 MB |
512 KB |
0 KB |
|
Chipset |
Intel 910GMLE*/915GME + ICH6M |
|
|
BIOS |
Award 4 Mbit FWH |
|
|
|
Expansion Slot |
PCI |
32-bit/33 MHz, 1 slot |
|
|
Mini-PCI |
- |
|
|
|
|
PCIe |
- |
|
|
|
|
Memory |
Technology |
Dual Channel DDR2 400/533 SDRAM |
|
|
Max. Capacity |
2 GB |
|
|
|
|
Socket |
240-pin DIMM x 2 |
|
Graphics |
Controller |
Intel 910GMLE/915GME GMCH integrated Graphics Media Accelerator 900 |
|
VRAM |
Intel DVMT 3.0 supports up to 128 MB video memory |
|
1st LVDS |
Single channel 18-bit/Dual channel 36-bit LVDS |
|
2nd LVDS |
Single channel 18/24-bit/Dual channel 36/48-bit LVDS, via Chrontel 7308B SDVO transmitter |
|
DVI |
None |
|
Dual Display |
VGA + LVDS, LVDS + LVDS |
|
Ethernet |
Interface |
10/100/1000Base -T |
|
Controller |
GbE LAN1: Realtek RTL8111C; GbE LAN2: Realtek RTL8111C |
|
Connector |
RJ-45 x 2 |
|
SATA |
Max Data Transfer Rate |
150 MB/s |
|
Channel |
2 |
|
EIDE |
Mode |
EIDE (Ultra DMA 100) |
|
Channel |
1 |
|
SSD |
Compact Flash |
Supports compact flash type I/II |
|
Rear I/O |
VGA |
1 |
|
Ethernet |
1 (for VG version); 2 (for G2 version) |
|
USB |
4 (USB 2.0 compliant) |
|
Audio |
MIC-In, Line-Out, Line-in |
|
Serial |
1 (RS-232/422/485) |
|
Parallel |
1 |
|
PS/2 |
2 (1 x keyboard and 1 x mouse) |
|
Internal Connector |
LVDS & Inverter |
2 |
|
USB |
4 (USB 2.0 compliant) |
|
Serial |
4 (RS-232) |
|
IDE |
1 |
|
SATA |
2 |
|
Compact Flash |
1 |
|
IrDA |
- |
|
DIO |
16-bit GPIO |
|
Watchdog Timer |
Output |
Interrupt, system reset |
|
Interval |
Programmable 1 ~ 255 sec/ min |
|
Power Requirement |
Typical |
Intel 915GME and Pentium M 760 2.0 GHz FSB 533 MHz, 2 GB DDR2 SDRAM |
|
|
+5 V |
+3.3 V |
+12 V |
+5 VSB |
|
|
2.61 A |
0.71 A |
1.93 A |
0.59 A |
|
nvironment |
|
Operating |
|
|
|
|
Temperature |
0 ~ 60° C (32 ~ 140° F) |
|
Physical Characteristics |
Dimensions |
170 mm x 170 mm (6.69" x 6.69") |
|
* Intel 910GMLE only supports FSB 400 processor and DDR2 400 SDRAMRoHSCOMPLIANT2002 |
订货信息
|
产品型号 |
CPU |
芯片组 |
GbE |
COM |
LVDS |
|
AIMB-252VG-M0A1E |
ULV Celeron M600 MHz |
910GMLE |
1 |
5 |
Single |
|
AIMB-252VG-S0A1E |
ULV Celeron M 1 GHz |
910GMLE |
1 |
5 |
Single |
|
AIMB-252G2-00A1E |
socket type |
915GME |
2 |
5 |
Single |
|
AIMB-252G2-M0A1E |
ULV Celeron M600 MHz |
910GMLE |
2 |
5 |
Dual |

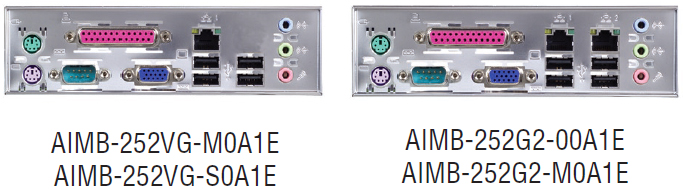

背板图片
可选配件料号
|
Part Number |
Description |
|
1700003195 |
USB cable with four ports, 17.5 cm |
|
1700002204 |
USB cable with four ports, 27 cm |
|
1700002314 |
USB cable with four ports, 30.5 cm |
|
AIMB-RP30P-03A1E |
AIMB-RP30P-03A1E |
配料包
|
Description |
Quantity |
|
AIMB-252 SBC |
x 1 |
|
IDE HDD cable (40 pin) |
x 1 |
|
SATA HDD cable |
x 2 |
|
SATA Power cable |
x 2 |
|
Serial port cable 1-to-2 |
x 2 |
|
CPU cooler |
x 1 |
|
I/O port bracket |
x 1 |
|
Startup manual |
x 1 |
|
Driver CD |
x 1 |
