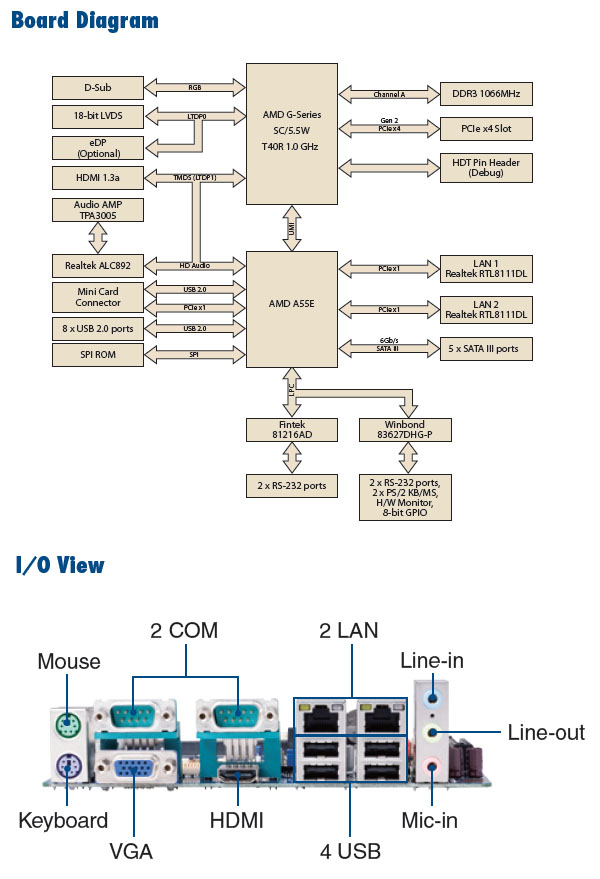

Processor System
|
CPU
|
AMD Single CoreT40R
|
|
Core Number
|
1
|
|
Max. Speed
|
1.0 GHz
|
|
L2 Cache
|
512 KB
|
|
Chipset
|
AMD A55E Controller Hub
|
|
BIOS
|
AMI 16Mbit, SPI
|
|
Expansion Slots
|
PCI
|
-
|
|
PCIe x4
|
1 GB/s per direction, 1 slot
|
|
PCIe x1
|
-
|
|
Full-size Mini PCIe
|
1
|
|
Memory
|
Technology
|
DDR3 1066/1333 MHz
|
|
Max. Capacity
|
4 GB
|
|
Socket
|
1 x 204-pin DIMM
|
|
Graphics
|
Controller
|
AMD Radeon HD 6250
|
|
VRAM
|
Shared system memory up to 2 GB SDRAM
|
|
VGA
|
1, supports up to 1920 x 1200
|
|
LVDS
|
1, single channel 18-bit LVDS supports max resolution 1400 x 1050
|
|
HDMI
|
1, HDMI 1.3 supports max resolution 1920 x 1080
|
|
eDP
|
Optional
|
|
Dual Display
|
VGA + LVDS, VGA + HDMI, LVDS + HDMI
|
|
Ethernet
|
Interface
|
10/100/1000 Mbps
|
|
Controller
|
GbE-LAN1: Realtek RTL8111DL, GbE-LAN2: Realtek RTL8111DL
|
|
Connector
|
RJ-45 x2
|
|
SATA
|
Max Data Transfer Rate
|
600 MB/s
|
|
Channel
|
5
|
|
SSD
|
CFast
|
Optional
|
|
Rear I/O
|
VGA
|
1
|
|
Display Port
|
-
|
|
HDMI
|
1
|
|
Ethernet
|
2
|
|
USB
|
4 (USB 2.0)
|
|
Audio
|
3 (Line-out, Line-in, Mic-in)
|
|
Serial
|
2 (RS-232)
|
|
PS/2
|
2 (1 x keyboard and 1 x mouse)
|
|
Internal Connectors
|
LVDS & Inverter
|
1
|
|
DVI
|
-
|
|
USB
|
4 (USB 2.0)
|
|
Serial
|
2 (RS-232)
|
|
IDE
|
-
|
|
SATA
|
5 (SATA III)
|
|
CFast
|
Optional
|
|
Parallel
|
-
|
|
GPIO
|
8-bit (4-bit DI and 4-bit DO)
|
|
Watchdog Timer
|
Output
|
System reset
|
|
Interval
|
Programmable 1~ 255 sec/min
|
|
Power Requirements
|
Power On
|
+12 V
|
+5 V
|
+3.3 V
|
5 Vsb
|
-12 V
|
|
|
0.73 A
|
1.46 A
|
0.44 A
|
0.07 A
|
|
|
Environment
|
Temperature
|
Operating
|
Non-Operating
|
|
|
0 ~ 50° C (32 ~ 122° F)
|
-20 ~ 70° C (-4 ~ 158° F)
|
|
Physical Characteristics
|
Dimensions
|
170 x 170 mm (6.69" x 6.69")
|
